Description

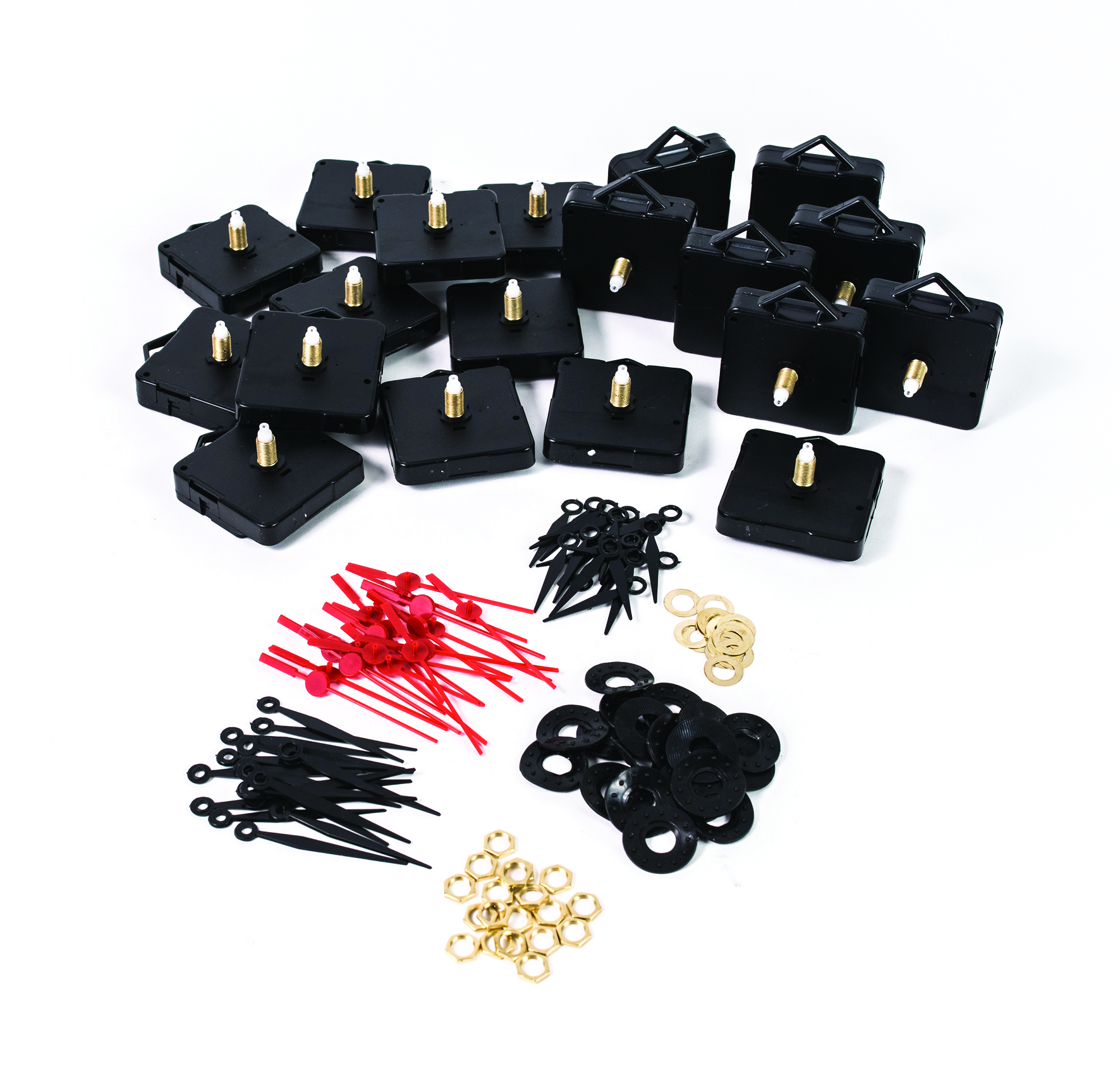

Clock Movement & Hands Pack of 20
A precision quartz clock movement complete with hands, which is self-starting, maintenance free,
and with long time stability achieved by fixed equilibrium. An extremely reliable unit, universally applicable,
and easy to mount with centre fixing (hardware supplied), and integral hanger.
The unit is supplied complete with hour, minute and second hands.
Requires one AA size battery (not included) for up to 2 years running.
CE approved
and with long time stability achieved by fixed equilibrium. An extremely reliable unit, universally applicable,
and easy to mount with centre fixing (hardware supplied), and integral hanger.
The unit is supplied complete with hour, minute and second hands.
Requires one AA size battery (not included) for up to 2 years running.
CE approved
Temperature range: | -10°C to +60°C |
Crystal frequency: | 32.768 KHz |
Operating voltage: | 1.2 V to 1.7 V |
Median current consumption: | 130µA @ 1.5 V |
Median running time: | 2 years |
Dimensions (mm): | 56W x 56H x 16.2D (not including mounting boss and hand pivots) Shaft length: 18.5mm Second hand: 75mm Minute hand: 60mm Hour hand: 42mm |
RoHS compliant & CE approved.
